Supplier Rego LV404B96 Twin Stage Propane Regulator Black 9-13 WC Outlet Pressure

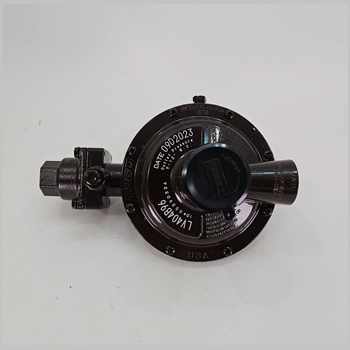

WWW.DISTRIBUTORALATINDUSTRI.COM | Supplier Rego LV404B96 Twin Stage Propane Regulator Black 9-13 WC Outlet Pressure The RegO LV404B96 is a compact twin-stage propane (LP-Gas) pressure regulator designed to reduce high and varying cylinder or tank pressure directly to low appliance operating pressure in a single regulator assembly. By integrating both the first-stage and second-stage regulators into one compact unit, the LV404B96 provides stable gas pressure, reliable flow performance, and simplified installation for residential and light commercial propane systems. It is ideal for propane cylinders, ASME storage tanks, mobile homes, cottages, generators, outdoor heating equipment, and other LP-Gas applications requiring a constant 9–13 inches water column (W.C.) outlet pressure.
Supplier Rego LV404B96 Twin Stage Propane Regulator Black 9-13 WC Outlet Pressure
Product Description
- Product Name: Twin Stage Propane LP Gas Regulator
- Manufacturer: RegO
- Model: LV404B96
- Regulator Type: Twin Stage (First Stage + Second Stage)
- Gas Service: Propane (LP-Gas) Vapor
- Operating Principle: Direct-Acting Spring-Loaded Pressure Regulator
- Inlet Connection: Female POL
- Outlet Connection: 3/4″ Female NPT
- Outlet Pressure: Factory set at 11″ Water Column (W.C.)
- Outlet Pressure Adjustment Range: 9–13″ W.C. (22.4–32.3 mbar)
- Factory Delivery Pressure: 11″ W.C. at 100 PSIG inlet pressure
- Orifice Size: 3/16″ (4.78 mm)
- Propane Vapor Capacity: Up to 600,000 BTU/hr (approximately 13 kg/hr propane)
- Operating Temperature: –40°F to +165°F (–40°C to +74°C)
Construction Materials
- First Stage Body: Zinc or Brass (depending on production version)
- Second Stage Body: Die-Cast Zinc
- Nozzle Orifice: Brass
- Valve Seat Disc: Resilient Synthetic Rubber
- Diaphragm: Fabric-Reinforced Synthetic Rubber
- Spring: Steel
- Finish: Black corrosion-resistant coating
Key Features
- Integrated two-stage pressure regulation in a single compact regulator.
- Reduces varying propane tank pressure directly to appliance pressure (11″ W.C. nominal).
- Adjustable outlet pressure from 9 to 13 inches W.C.
- Built-in internal relief valve for downstream overpressure protection.
- Large 3/4″ FNPT vent allows vent piping where required by installation codes.
- 1/8″ FNPT pressure taps on both first and second stages for pressure testing and adjustment.
- Compact design fits easily beneath cylinder hoods and inside tank collars.
- Corrosion-resistant construction suitable for outdoor installations.
- Stable outlet pressure despite fluctuations in tank pressure and propane demand.
- Engineered for continuous, reliable operation in residential and light commercial LP-Gas systems.
Typical Applications
- Residential propane supply systems
- Mobile homes and manufactured housing
- Small ASME propane tanks
- 100–420 lb DOT propane cylinders
- LPG-powered standby generators
- Outdoor cooking and heating equipment
- Fireplaces and gas furnaces
- Boilers and water heaters
- Agricultural propane systems
- Commercial propane distribution installations requiring a constant 11″ W.C. outlet pressure.
