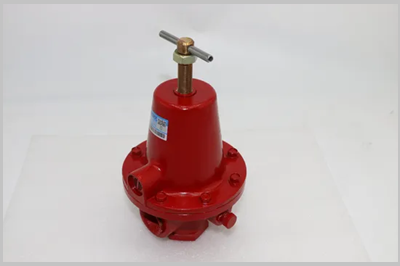

WWW.DISTRIBUTORALATINDUSTRI.COM | Distributor RegO 1586 High Pressure Gas Pressure Reducing Regulator The RegO 1586 is a high-capacity, direct-acting pressure reducing regulator designed for industrial and commercial LP-Gas systems. It is part of the RegO 1580V Series, engineered to reduce high container pressure to a controlled downstream pressure for high-demand gas applications. The regulator is suitable for LP-Gas (Propane) and Anhydrous Ammonia (NH₃) service, making it ideal for large industrial burners, crop dryers, asphalt plants, heat treatment furnaces, and other high-capacity gas systems. It is also widely used as a first-stage regulator in large multi-regulator installations.
Distributor RegO 1586 High Pressure Gas Pressure Reducing Regulator
Product Description
- Product Name: High Pressure Gas Pressure Reducing Regulator
- Manufacturer: RegO
- Model: 1586
- Series: 1580V Series
- Regulator Type: Direct-Acting, Spring-Loaded Pressure Regulator
- Service: LP-Gas (Propane) and Anhydrous Ammonia (AA models)
- Application: Industrial and Commercial Gas Pressure Reduction
- Connection Type: Female NPT × Female NPT
- Inlet Connection: 3/4″ FNPT
- Outlet Connection: 3/4″ FNPT
- Adjustment Method: Tee Handle
- Outlet Pressure Range:
- 1586VN: 3–30 PSIG
- 1586VL: 25–50 PSIG
- 1586VH: 45–125 PSIG
- Maximum Vapor Capacity:
- Up to 14,000,000 BTU/hr
- Approximately 295 kg/hr Propane (1586VH model)
- Operating Temperature:
- Standard 1586 Series: –40°F to +165°F (–40°C to +74°C)
- X1586 High-Temperature Series: –40°F to +300°F (–40°C to +149°C)
Construction Materials
- Body: Forged Aluminum
- Bonnet: Die-Cast Aluminum
- Spring: Steel (Stainless Steel on X1586 high-temperature models)
- Diaphragm: Integrated Fabric-Reinforced Synthetic Rubber
- Valve Seat Disc: Resilient Rubber (High-Temperature Composition on X1586 Series)
- Backup Seal: High-Temperature Resilient Composition (X1586 Series)
Key Features
- High-capacity pressure regulator for demanding industrial and commercial gas applications.
- Direct-acting design provides stable and accurate downstream pressure control.
- Large nozzle and straight-through flow path deliver high flow capacity with minimal pressure loss.
- Suitable for both liquid and vapor LP-Gas service.
- Compatible with Anhydrous Ammonia service (AA series).
- Built-in 1/4″ FNPT gauge port for installation of a pressure gauge.
- O-ring retainer assembly helps reduce vibration and improve regulator stability.
- Rugged forged aluminum construction offers excellent corrosion resistance and long service life.
- Designed for continuous-duty operation in harsh industrial environments.
- Available in multiple outlet pressure ranges to suit different process requirements.
Typical Applications
- Industrial gas burner systems
- Crop dryers
- Asphalt batch mixing plants
- Road construction tar kettles and tar wagons
- Heat treatment furnaces
- Industrial ovens
- Glass and ceramic manufacturing
- LPG vaporizer systems
- Large commercial heating systems
- First-stage pressure regulation for bulk LPG installations
- Petrochemical and industrial fuel gas distribution systems
