Supplier EJA210E Flange Mounted Differential Pressure Transmitter

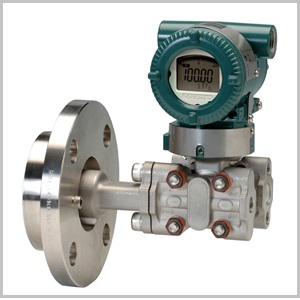

WWW.DISTRIBUTORALATINDUSTRI.COM | The Yokogawa EJA210E is a high-performance flange-mounted differential pressure (DP) transmitter specifically designed for liquid level measurement in tanks and vessels, particularly for liquids that may solidify, precipitate, or contain suspended materials. It uses Yokogawa’s DPharp silicon resonant sensor technology to provide stable and accurate differential-pressure measurement. The transmitter converts the measured differential pressure into a standard output signal and can also measure static pressure.

Supplier EJA210E Flange Mounted Differential Pressure Transmitter

ITEM SPECIFICATION
MANUFACTURER YOKOGAWA
MODEL EJA210E
TYPE FLANGE-MOUNTED DIFFERENTIAL PRESSURE TRANSMITTER
APPLICATION LIQUID LEVEL MEASUREMENT
MEASURING PRINCIPLE DIFFERENTIAL PRESSURE
PRIMARY VARIABLE LIQUID LEVEL / DIFFERENTIAL PRESSURE
SECONDARY VARIABLE STATIC PRESSURE
SENSOR TECHNOLOGY DPharp SILICON RESONANT SENSOR
REFERENCE ACCURACY – DP ±0.075% OF SPAN
REFERENCE ACCURACY – STATIC PRESSURE ±0.5% OF SPAN
RANGEABILITY 100:1
RESPONSE TIME – DP 120 ms
RESPONSE TIME – STATIC PRESSURE 360 ms
LONG-TERM STABILITY ±0.1% OF URL / 12 MONTHS (DP)
CAPSULE CODE M OR H
CAPSULE M SPAN 4–400 inH₂O
CAPSULE H SPAN 20–2,000 inH₂O
OUTPUT OPTIONS 4–20 mA DC + BRAIN / HART 5/7 / FOUNDATION FIELDBUS / PROFIBUS PA / 1–5 V DC HART
FLANGE CONNECTION 1½”, 2″, 3″, OR 4″, DEPENDING ON CONFIGURATION
FLANGE STANDARD JIS, ANSI, JPI, OR DIN, DEPENDING ON CONFIGURATION
DIAPHRAGM MATERIAL HASTELLOY C-276, CONFIGURATION DEPENDENT
WETTED PARTS 316L SST / HASTELLOY C-276 / MATERIAL DEPENDENT ON CODE
PROCESS CONNECTION TYPE FLUSH OR EXTENDED TYPE
DISPLAY OPTIONAL INTEGRAL INDICATOR
COMMUNICATION BRAIN, HART, FOUNDATION FIELDBUS, OR PROFIBUS PA
SELF-DIAGNOSTICS AVAILABLE
INSTALLATION DIRECT FLANGE MOUNTING TO TANK / VESSEL
APPLICATION MEDIA LIQUIDS, INCLUDING SOLIDIFYING OR PRECIPITATING LIQUIDS

The capsule and flange specifications above are configuration-dependent. For example, Yokogawa lists the EJA210E with M and H capsules, while process connections include 1½”, 2″, 3″, and 4″ flange sizes and JIS, ANSI, JPI, or DIN flange standards.

MEASURING PRINCIPLE

The EJA210E measures the differential pressure between the high-pressure (HP) and low-pressure (LP) sides. In level applications, the differential pressure generated by the liquid column is used to determine the liquid level inside a tank or vessel.

The flange-mounted diaphragm seal provides direct contact with the process while isolating the transmitter sensing system from the process fluid. This makes the instrument particularly suitable for viscous, corrosive, solidifying, or precipitating liquids.

PROCESS CONNECTION

The EJA210E is available in several flange configurations:

  • Flush Type: 1½”, 2″, or 3″ flange
  • Extended Type: 3″ or 4″ flange
  • Flange Standards: JIS 10K/20K, ANSI 150#/300#, JPI Class 150/300, DIN PN10/16 or PN25/40

The exact flange size, rating, and extension length must be selected according to the tank nozzle and process conditions.

OUTPUT & COMMUNICATION

Depending on the model code, the EJA210E can be supplied with:

  • 4–20 mA DC + BRAIN
  • 4–20 mA DC + HART 5/HART 7
  • FOUNDATION Fieldbus
  • PROFIBUS PA
  • 1–5 V DC + HART 7 (Low Power)

The HART 5/HART 7 version is a common configuration for integration with PLC, DCS, and SCADA systems.

KEY FEATURES
  • High accuracy up to ±0.075% of span for differential pressure measurement.
  • 100:1 rangeability.
  • Fast response time of approximately 120 ms for DP measurement.
  • Suitable for liquid level measurement.
  • Suitable for liquids that can solidify or precipitate.
  • Available with flush or extended diaphragm seal.
  • Multiple flange sizes and pressure classes available.
  • Supports HART, BRAIN, FOUNDATION Fieldbus, and PROFIBUS PA, depending on model.
  • Integral display and remote configuration options available.
  • Built-in self-diagnostic functions.
TYPICAL APPLICATIONS

The EJA210E is commonly applied for:

  • Tank Level Measurement
  • Liquid Level Measurement
  • Chemical Storage Tanks
  • Process Vessels
  • Wastewater Tanks
  • Slurry / Suspended-Solid Applications
  • Viscous Liquid Applications
  • Liquids Subject to Solidification
  • Liquids Subject to Precipitation
