Supplier Hattersley Check Valve 47 (Bronze)
WWW.DISTRIBUTORALATINDUSTRI.COM | Suppier Hattersley Check Valve 47 (Bronze) The valve features a horizontal swing pattern with a robust, high-quality bronze body and a metal-to-metal seat for enhanced sealing performance. Figure 47 is taper threaded to BS EN 10226 ISO 7-1 (BS 21) standards.

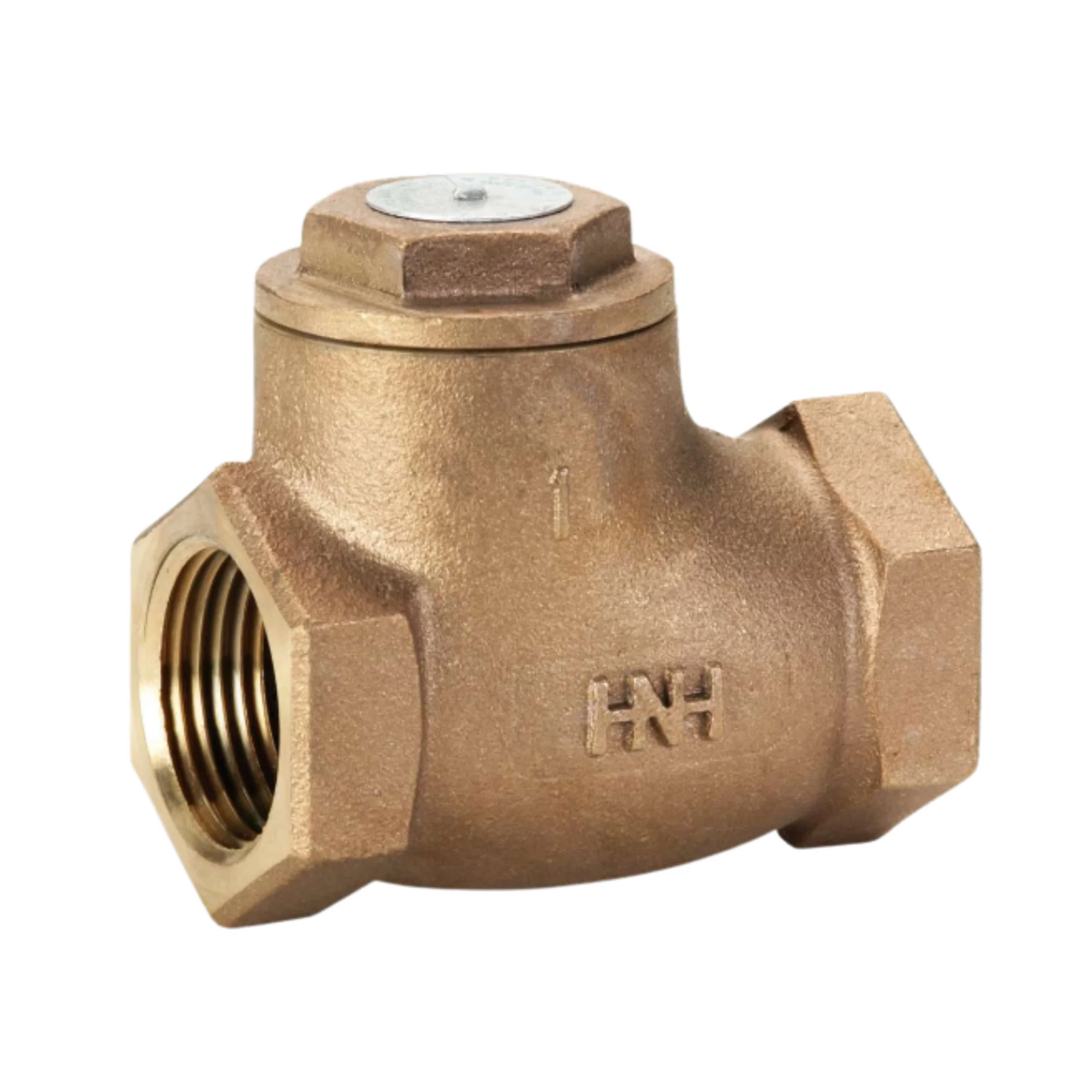

The Hattersley Fig. 47 Check Valve (Bronze) is a high-quality non-return valve designed to prevent backflow and ensure unidirectional flow in water, heating, cooling, and general building service systems. Manufactured from durable bronze material, the valve offers excellent corrosion resistance, reliable performance, and a long service life, making it suitable for commercial, residential, and industrial applications.
The valve operates automatically using a swing-type mechanism that allows fluid to flow in one direction while preventing reverse flow, protecting pumps, equipment, and piping systems from potential damage caused by back pressure. Its robust construction and low-pressure-loss design contribute to efficient system operation and minimal maintenance requirements.
The Hattersley Fig. 47 Check Valve is suitable for hot and cold water services, including potable water applications, and is widely used in HVAC, plumbing, and hydronic systems where dependable backflow prevention is essential.
Key Features
- Bronze body construction for superior corrosion resistance and durability.
- Automatic non-return operation to prevent reverse flow.
- Swing check design for reliable and efficient performance.
- Low-pressure-drop characteristics for improved system efficiency.
- Suitable for hot water, cold water, and potable water applications.
- Minimal maintenance requirements and long service life.
- Compact and robust design for easy installation.
- Protects pumps, valves, and other system components from backflow damage.
Applications
- HVAC (Heating, Ventilation, and Air Conditioning) systems.
- Hot water and chilled water circulation systems.
- Potable water distribution networks.
- Commercial and residential plumbing installations.
- Industrial utility and process water systems.
- Pump discharge and backflow prevention applications.
General Specifications
| Item | Specification |
|---|---|
| Brand | Hattersley |
| Model | Fig. 47 |
| Valve Type | Swing Check Valve (Non-Return Valve) |
| Body Material | Bronze |
| Disc Material | Bronze |
| Seat Material | Metal Seat |
| Connection Type | Threaded (BSP) |
| Operation | Automatic |
| Maximum Working Pressure | Up to 20 bar |
| Temperature Range | -10°C to +120°C |
| Suitable Media | Hot Water, Cold Water, Potable Water, and Non-Aggressive Fluids |
| Applications | HVAC, Plumbing, Water Distribution, and Building Services |
The Hattersley Fig. 47 Bronze Check Valve provides reliable backflow prevention, durable construction, and efficient operation, making it an ideal solution for maintaining safe and dependable fluid flow in modern building service systems.
