Supplier NuFlo MC-II Flow Analyzer with Turbine Flow Meter

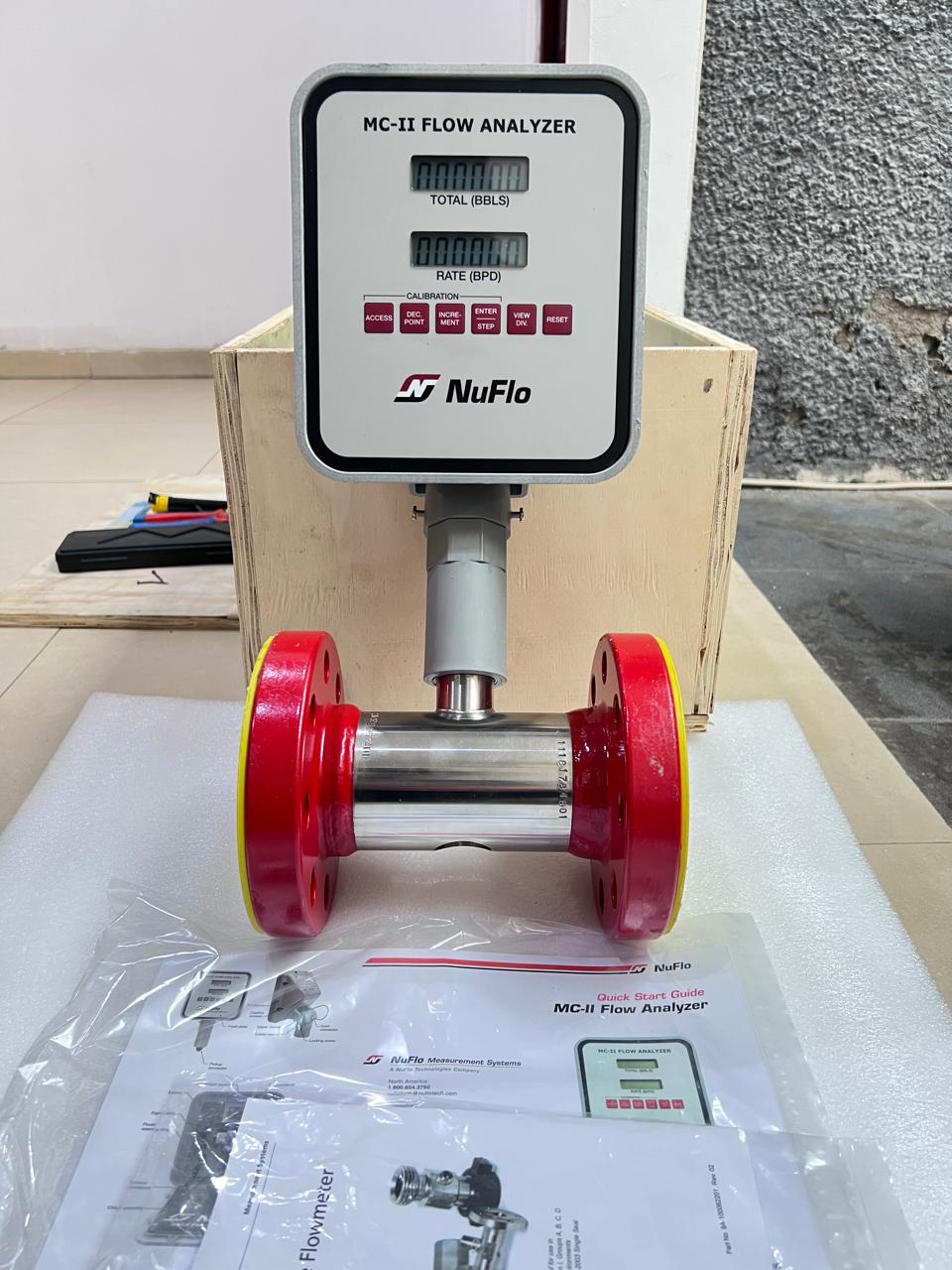

WWW.DISTRIBUTORALATINDUSTRI.COM | Supplier NuFlo MC-II Flow Analyzer with Turbine Flow Meter The NUFLO MC-II Flow Analyzer is a high-performance electronic flow computer designed for accurate flow measurement, totalization, and monitoring of liquid flow in industrial applications. Manufactured by NuFlo Measurement Systems (now part of Sensia, a joint venture between Rockwell Automation and SLB), the MC-II combines a reliable electronic flow analyzer with a precision turbine flow meter to provide dependable flow measurement in demanding field environments.
Supplier NuFlo MC-II Flow Analyzer with Turbine Flow Meter
The system continuously receives pulse signals from the turbine flow meter, calculates instantaneous flow rate, and displays both flow rate (BPD) and accumulated total flow (BBLS) on two independent LCD displays. Its rugged design, simple operation, and low power consumption make it ideal for remote installations where reliable performance and ease of maintenance are essential.
The MC-II Flow Analyzer is widely used in the oil & gas, petrochemical, chemical processing, water injection, production testing, custody transfer, and industrial process control industries. It is suitable for measuring clean liquids with stable viscosity and provides excellent repeatability and long-term measurement stability.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Flow Analyzer with Turbine Flow Meter |
| Manufacturer / Brand | NuFlo Measurement Systems |
| Model | MC-II Flow Analyzer |
| Type | Electronic Flow Computer / Flow Totalizer |
| Measurement Principle | Turbine Flow Measurement |
| Measured Media | Clean liquids such as crude oil, condensate, diesel, refined petroleum products, chemicals, and water |
| Display | Dual LCD Display |
| Upper Display | Total Volume (BBLS) |
| Lower Display | Flow Rate (BPD) |
| Engineering Units | User configurable depending on application |
| Signal Input | Pulse input from turbine flow meter |
| Flow Calculation | Instantaneous flow rate and totalized volume |
| Programming | Front panel keypad configuration |
| Calibration | Electronic K-Factor calibration |
| Power Supply | Battery powered or external power (depending on configuration) |
| Communication | Optional depending on model configuration |
| Housing | Rugged industrial weather-resistant enclosure |
| Mounting | Field mounted directly on flow meter or remote mounting |
| Process Connection | Flanged turbine flow meter (size and rating according to specification) |
| Operating Environment | Suitable for industrial indoor and outdoor installations |
Standard Features
- High-accuracy electronic flow measurement
- Continuous real-time flow rate indication
- Total accumulated volume display
- Dual LCD display for easy reading
- User-friendly front panel keypad
- High-resolution turbine pulse counting
- Programmable calibration (K-Factor)
- Excellent repeatability and long-term stability
- Low power consumption
- Rugged industrial construction
- Weather-resistant enclosure for field applications
- Direct mounting on turbine flow meters
- Reliable operation in harsh industrial environments
- Simple installation and maintenance
- Long service life with minimal maintenance requirements
Typical Applications
- Oil & Gas Production
- Well Testing
- Lease Automatic Custody Transfer (LACT)
- Crude Oil Measurement
- Condensate Measurement
- Chemical Injection Systems
- Water Injection Systems
- Pipeline Monitoring
- Refineries
- Petrochemical Plants
- Industrial Liquid Flow Monitoring
- Process Control Systems
