Supplier Madas Gas Pressure Regulators FRG RG 2MC

WWW.DISTRIBUTORALATINDUSTRI.COM | Supplier Gas Pressure Regulators FRG RG 2MC Device which supplies a preset and constant “downstream” pressure value (within the intended operating limits) when the inlet pressure and/or the flow rate changes. The compensated obturator ensures precision when adjusting the outlet pressure even in the case of high and sudden variations in the inlet pressure.

Supplier Gas Pressure Regulators FRG RG 2MC

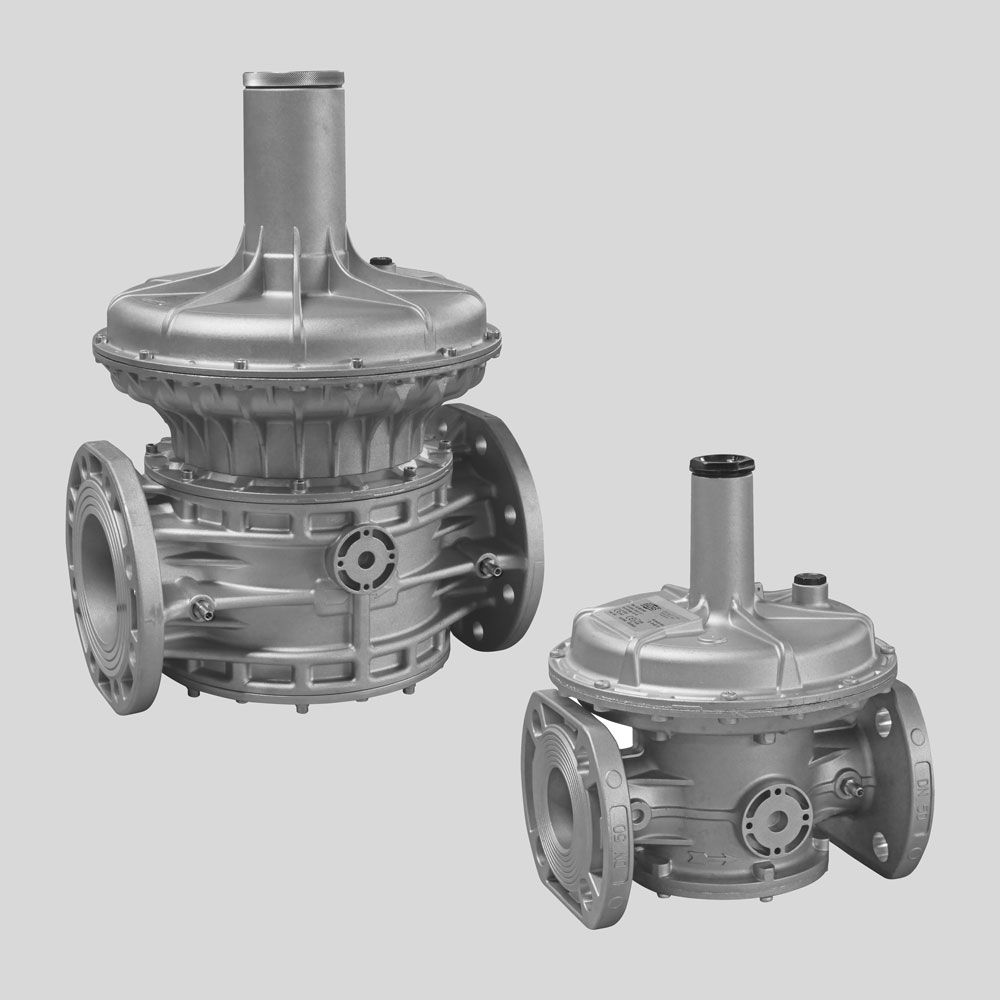

The MADAS FRG/2MC Gas Pressure Regulator is a direct-acting, spring-loaded pressure regulator designed to reduce and maintain a stable outlet pressure for natural gas, LPG, biogas, and other non-aggressive gases. Engineered for commercial and industrial gas systems, the regulator ensures reliable pressure control, safe operation, and high flow capacity for burners, boilers, furnaces, and gas distribution networks.

Manufactured in Italy, the FRG/2MC series features a compact and robust aluminum body, providing excellent durability, easy maintenance, and compliance with European gas equipment standards.

Features:

  • Direct-acting, spring-loaded pressure regulation
  • Precise and stable outlet pressure control
  • High flow capacity with low pressure drop
  • Compact and lightweight construction
  • Built-in safety relief function (depending on model)
  • Suitable for natural gas, LPG, biogas, and non-corrosive gases
  • Easy maintenance and simple installation
  • Reliable performance in industrial and commercial applications
  • Designed and manufactured according to European standards

Construction Materials:

  • Body: Die-Cast Aluminum Alloy
  • Internal Components: Stainless Steel and Brass
  • Diaphragm: Reinforced Synthetic Rubber
  • Seals and Gaskets: NBR Rubber
  • Springs: Corrosion-Resistant Steel

Technical Specifications:

  • Model: FRG/2MC
  • Type: Direct-Acting Gas Pressure Regulator
  • Connection: Threaded or Flanged (depending on configuration)
  • Maximum Inlet Pressure: Up to 2 Bar
  • Outlet Pressure Range: Adjustable according to spring selection
  • Operating Temperature: -15°C to +60°C
  • Suitable Media: Natural Gas, LPG, Biogas, Air, and Other Non-Corrosive Gases
  • Compliance: EN 88-1 and PED 2014/68/EU

Applications:

  • Gas pressure regulating stations
  • Industrial burner systems
  • Boilers and furnaces
  • Commercial heating equipment
  • Food processing plants
  • Power generation facilities
  • Natural gas and LPG distribution networks
  • General industrial gas installations

The MADAS FRG/2MC Gas Pressure Regulator delivers accurate pressure control, high operational reliability, and enhanced safety, making it an ideal solution for commercial and industrial gas applications requiring stable and efficient gas supply management

It is fitted with:

a spring to adjust the outlet pressure;
a safety membrane;
output pressure test nipple (with some exceptions) to control the outlet pressure. On some models the pressure test nipple is also present on the input;

It can also be supplied with a built-in filtering element (FRG/2MC models).

Available 90° connections for threaded connections from DN 15 to DN 50.

Reference standards: EN 88-2 – EN 13611.

In compliance with:

Regulation (EU) 2016/426 (Appliances burning gaseous fuels)
PED Directive 2014/68/EU
ATEX Directive 2014/34/EU – II 2G – II 2D
