Supplier Hattersley Balancing Valve 1732 (Bronze)
WWW.DISTRIBUTORALATINDUSTRI.COM | HATTERSLEY BALANCING VALVE 1732 (BRONZE) Provides precise and accurate flow regulation. Easy to operate with handwheel and numerical indicator. Integral orifice and test points – no need for separate DRV and metering station. WRAS Approved for use with potable water to 85°C. Positive flow control at all handwheel settings. The FODRV offers an accuracy of ± 5% on all settings, for precise flow regulation and measurement

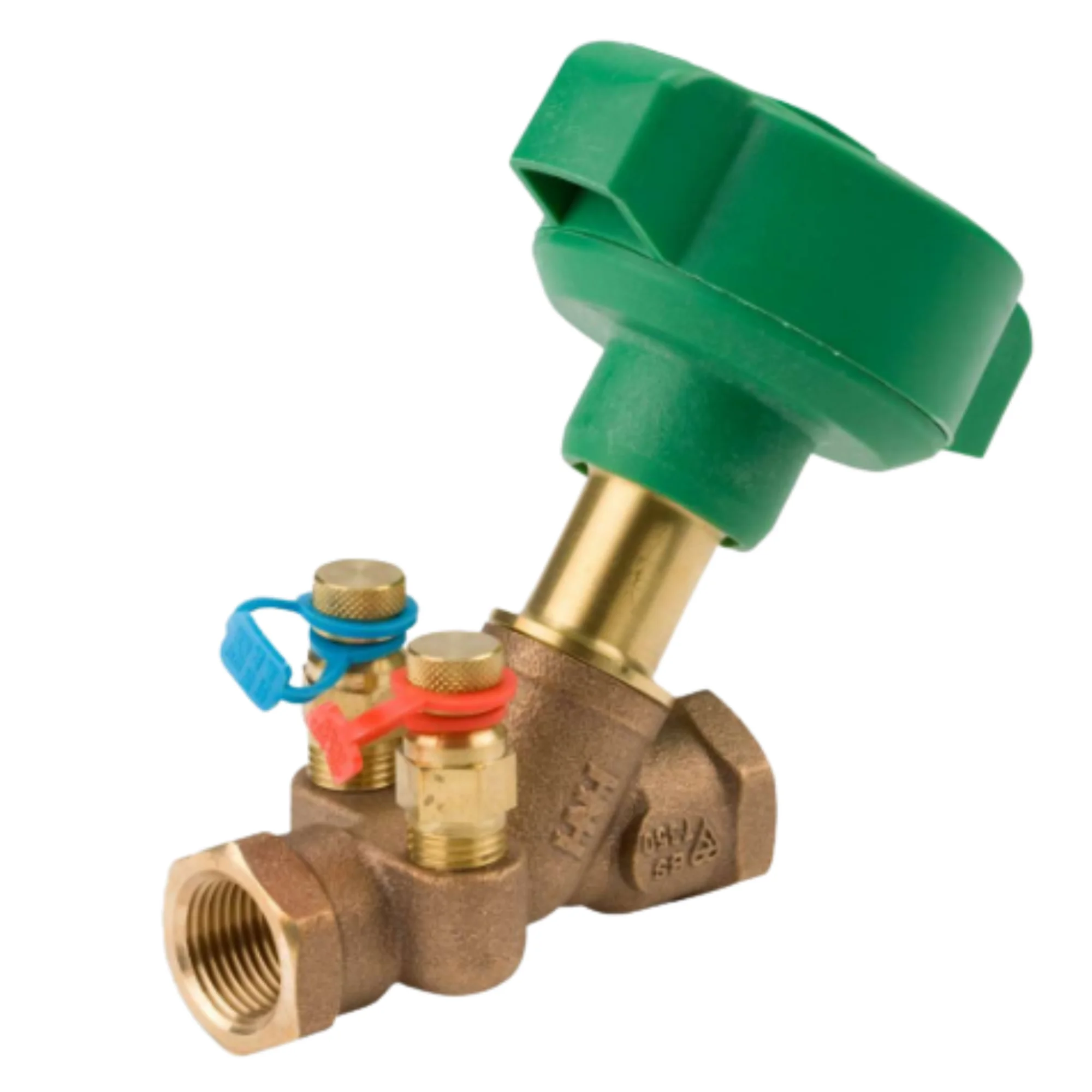

The Hattersley Fig. 1732 Balancing Valve (Bronze) is a Fixed Orifice Double Regulating Valve (FODRV) designed for precise flow regulation, measurement, and balancing in HVAC, heating, cooling, and water distribution systems. The valve incorporates a fixed orifice design with integral test points, eliminating the need for a separate Double Regulating Valve (DRV) and metering station, resulting in a simpler and more cost-effective installation.
The valve body is manufactured from high-quality bronze in accordance with BS EN 1982 CC491K, providing excellent corrosion resistance and long service life. It is operated by a handwheel with a numerical indicator, allowing easy adjustment and system commissioning. Hattersley’s FODRV technology offers flow measurement and balancing accuracy of up to ±5% across all valve settings, ensuring optimum hydraulic performance and improved energy efficiency.
The valve is also WRAS approved for potable water applications at temperatures up to 85°C, making it suitable for a wide range of commercial and industrial building services.
Key Features
- Fixed Orifice Double Regulating Valve (FODRV) for precise flow regulation and measurement.
- Flow measurement and balancing accuracy of up to ±5% at all valve settings.
- Handwheel with a numerical indicator for easy operation and commissioning.
- Integral fixed orifice and test points, eliminating the need for a separate metering station.
- Positive and stable flow control throughout the entire operating range.
- Corrosion-resistant bronze construction for long service life.
- WRAS approved for potable water applications up to 85°C.
Applications
- HVAC (Heating, Ventilation, and Air Conditioning) systems.
- Chilled water systems.
- Hot water systems.
- Potable water installations.
- Commercial buildings, offices, hospitals, and industrial facilities.
- Hydronic system balancing and commissioning applications.
General Specifications
| Item | Specification |
|---|---|
| Brand | Hattersley |
| Model | Fig. 1732 |
| Valve Type | Fixed Orifice Double Regulating Valve (FODRV) |
| Body Material | Bronze (BS EN 1982 CC491K) |
| Connection Type | Threaded (PN20) / Compression (PN16) |
| Maximum Working Pressure | 20 bar |
| Temperature Range | -10°C to 120°C |
| WRAS Approved Temperature | Up to 85°C for potable water |
| Stem Material | DZR Copper Alloy (CW602N) |
| Stem Seal Material | EPDM |
| Disc Seal Material | PTFE (1–2 inch sizes) |
| Measurement Accuracy | ±5% |
| Standards | BS 7350, WRAS Approved |
