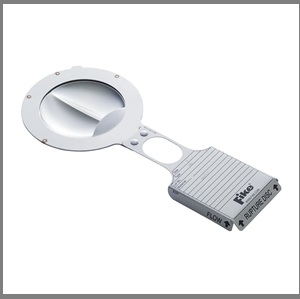

Supplier Fike AD-V Rupture Disc Lot Number 2405235
DISTRIBUTORALATINDUSTRI.COM | Fike AD-V Rupture Disc is a flat, bolt-type, forward-acting rupture disc designed specifically to provide reliable overpressure protection for atmospheric vessels, tanks, piping systems, and other industrial process equipment. The AD-V is engineered to rupture at a predetermined pressure, rapidly releasing excess pressure and helping prevent damage caused by overpressure conditions.
Supplier Fike AD-V Rupture Disc Lot Number 2405235
The AD-V design can be installed directly between standard companion pipe flanges and does not require a special rupture disc holder. The rupture disc is supplied with pre-attached gaskets on both sides, simplifying installation and ensuring proper sealing between the mating flanges.
The standard construction utilizes 316 stainless steel top and bottom sections with a fluoropolymer seal, while other material configurations can be specified depending on the process media and application requirements. The AD-V has a 50% operating ratio, allowing the system to operate below the specified rupture pressure while maintaining an appropriate safety margin.
The AD-V is intended for overpressure protection only. Unlike the standard AD version, which can provide overpressure and/or vacuum protection, the AD-V is designed to rupture in one direction and withstand vacuum conditions according to its specified configuration.
| Specification | Details |
|---|---|
| Manufacturer | Fike Corporation |
| Model | AD-V |
| Product Type | Rupture Disc |
| Design | Flat Composite, Forward-Acting |
| Configuration | Bolt-Type Rupture Disc |
| Primary Function | Overpressure Protection |
| Installation | Between Standard Companion Flanges |
| Special Holder | Not Required |
| Standard Material | 316 Stainless Steel Top & Bottom Sections |
| Seal Material | Fluoropolymer |
| Operating Ratio | 50% |
| Standard Size Range | 2″ to 24″ (DN50 to DN600) |
| Burst Pressure Range | 1 to 15 PSIG (0.07 to 1.03 barg) for the low-pressure range |
| Maximum Operating Temperature | 500°F (260°C) |
| Gasket | Pre-attached on both sides |
| Application | Atmospheric vessels, tanks, process equipment, piping and pressure-relief applications |
| Manufacturer Identification | Fike |
| Model Identification | AD-V Rupture Disc |
| Lot Number | 2405235 |
