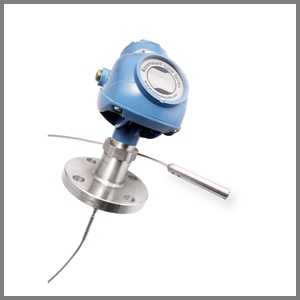

Supplier Emerson Rosemount 5302 Level Transmitter

WWW.DISTRIBUTORALATINDUSTRI.COM | Supplier Emerson Rosemount 5302 Level Transmitter | Emerson Rosemount 5302 is a Guided Wave Radar (GWR) Level Transmitter designed specifically for liquid level and liquid-liquid interface measurement. It uses Time Domain Reflectometry (TDR) technology, where radar pulses travel along a probe and are reflected from the surface of the process medium.

Supplier Emerson Rosemount 5302 Level Transmitter

Identification
  • Brand: Rosemount
  • Manufacturer: Emerson
  • Model: Rosemount 5302
  • Product Type: Guided Wave Radar Level & Interface Transmitter
  • Measurement: Liquid Level and Liquid-Liquid Interface
  • Technology: Guided Wave Radar / Time Domain Reflectometry (TDR)

The 5302 is specifically configured for level and interface measurement, making it suitable for applications such as oil/water separation and other liquids with significantly different dielectric constants.

Measuring Principle

The transmitter sends a high-frequency radar pulse down a probe installed inside the vessel. When the pulse reaches a change in dielectric constant at the product surface, part of the signal is reflected back to the transmitter.

The electronics calculate the time between the transmitted and reflected signal to determine the distance to the product surface. The transmitter can also identify the interface between two immiscible liquids.

Basic measurement:

Tank Reference → Product Surface → Liquid Interface → Probe End

This technology provides reliable measurement even when conditions include foam, vapor, turbulence, or changing process conditions.

Main Measurement Functions

Liquid Level Measurement
Measures the height of a liquid inside tanks, vessels, columns, and process equipment.

Interface Measurement
Measures the boundary between two liquids, for example:

  • Oil / Water
  • Hydrocarbon / Water
  • Light liquid / Heavy liquid

For interface measurement, the upper product generally needs a lower dielectric constant than the lower product, with sufficient dielectric contrast between the two liquids.

Signal Output

Depending on configuration, Rosemount 5302 can be supplied with:

  • 4–20 mA + HART
  • FOUNDATION Fieldbus
  • RS-485 + Modbus
  • Rosemount 2410 Tank Hub connectivity on applicable configurations

Probe Options

The Rosemount 5302 can be configured with different probe designs depending on tank geometry and application, including:

  • Rigid Single Lead Probe
  • Flexible Single Lead Probe
  • Flexible Single Lead with Weight
  • Flexible Single Lead with Chuck
  • Rigid Twin Lead Probe
  • Coaxial-type probe options
  • PTFE-covered probe options
  • Vapor probe options for applicable configurations

Probe selection is important because the correct probe depends on tank height, process material, dielectric properties, temperature, pressure, and installation geometry.

Specifications
  • Measurement Type: Level and Interface
  • Accuracy: Up to approximately ±3 mm (±0.12 in.) for the Rosemount 5300 platform, depending on configuration and application.
  • Standard Process Temperature: Up to approximately 150°C
  • High Temperature/Pressure Versions: Available depending on probe and configuration
  • High-Pressure Capability: Certain configurations support pressures up to approximately 345 bar (5,000 psi) at lower temperatures.
  • Probe Material: Commonly 316L stainless steel
  • Housing: Aluminum or stainless steel, depending on configuration
  • Communication: HART / FOUNDATION Fieldbus / Modbus, depending on model code
