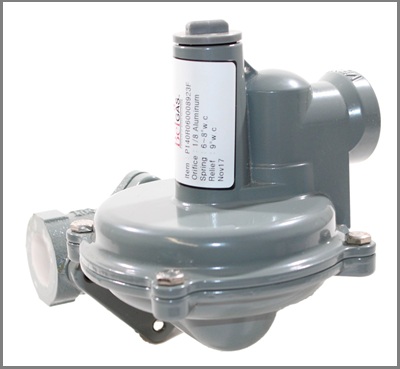

Supplier BelGAS P140R060008923F Pressure Regulator – 3/4 Inch NPT

WWW.DISTRIBUTORALATINDUSTRI.COM | Supplier BelGAS P140R060008923F Pressure Regulator – 3/4 Inch NPT The BelGAS P140R060008923F is a direct-operated, spring-loaded relieving gas pressure regulator designed to accurately reduce and maintain a constant downstream pressure for natural gas, propane (LPG), air, and other clean, non-corrosive gases. This model is part of the BelGAS Type P140 Series, which is widely used in commercial, residential, and light industrial gas distribution systems. The “R” designation indicates that the regulator is equipped with an internal relief valve, providing protection against downstream overpressure caused by seat leakage or thermal expansion. The P140 Series complies with ANSI B109.4 requirements for gas pressure regulators.

Supplier BelGAS P140R060008923F Pressure Regulator – 3/4 Inch NPT

The P140R060008923F features a 3/4-inch female NPT threaded connection, compact body construction, and a diaphragm-operated mechanism that delivers stable outlet pressure with fast response to changing flow demands. Its rugged cast metal body and corrosion-resistant internal components provide reliable performance and long service life in gas-fired equipment and distribution systems.

Technical Description
  • Brand: BelGAS
  • Model: P140R060008923F
  • Series: Type P140
  • Product Type: Direct-Operated Gas Pressure Regulator
  • Operation: Spring-Loaded, Diaphragm-Operated
  • Function: Reduces and maintains a constant downstream gas pressure
  • Relief Type: Internal Relieving (Automatic Internal Relief Valve)
  • Connection Size: 3/4 Inch Female NPT
  • Suitable Media: Natural Gas, LPG (Propane), Air, and other clean, non-corrosive gases
  • Body Material: Cast Iron / Aluminum (depending on configuration)
  • Diaphragm Material: Nitrile (Buna-N)
  • Seal Material: Nitrile Elastomer
  • Vent Screen: Stainless Steel
  • Spring Material: Zinc-Plated Steel
  • Maximum Inlet Pressure: Up to 125 psig (depending on orifice size)
  • Outlet Pressure Range: Configurable according to the installed spring, from 5 in. W.C. to 5 psig
  • Temperature Range: −20°F to +150°F (−29°C to +66°C)
  • Compliance: ANSI B109.4
  • Applications: Commercial gas distribution, residential gas service, industrial burners, furnaces, boilers, rooftop HVAC units, unit heaters, gas generators, and general-purpose gas pressure regulation.

P140R060008923F

  • P140 – Type 140 Series Direct-Operated Pressure Regulator
  • R – Internal Relieving Version
  • 06 – 3/4″ NPT Inlet/Outlet Connection
  • 0008923F – Factory configuration code specifying the spring range, body orientation, orifice size, relief setting, and other manufacturing options unique to this regulator. These suffix details are manufacturer-specific and are decoded using the BelGAS factory configuration matrix.
