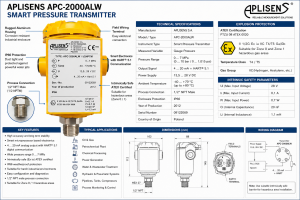

WWW.DISTRIBUTORALATINDUSTRI.COM | Supplier Aplisens APC-2000ALW The APLISENS APC-2000ALW is a high-performance smart pressure transmitter designed for precise measurement of gauge pressure in industrial process applications. It utilizes a piezoresistive sensing element combined with microprocessor-based electronics to provide highly accurate and stable pressure measurements.

Supplier Aplisens APC-2000ALW

The transmitter converts the measured pressure into a 4–20 mA analog output with HART® 5.1 digital communication, allowing remote configuration, diagnostics, and integration with distributed control systems (DCS), PLCs, and SCADA systems.

Designed for operation in hazardous and demanding industrial environments, the APC-2000ALW features intrinsically safe ATEX certification, a rugged IP66 enclosure, and excellent long-term measurement stability.

Technical Specifications

Manufacturer

• Brand: APLISENS S.A.
• Country of Origin: Poland

Model

• Type: APC-2000ALW
• Process Connection: 1/2″ NPT Male (1/2 NPTM)

Instrument Type

• Smart Pressure Transmitter
• Gauge Pressure Transmitter

Measuring Range

• Pressure Range: 0 to 7 MPa
• Equivalent to:
  • 0–70 bar
  • 0–1,015 psi

Output Signal

• 4–20 mA
• HART Protocol Version 5.1

The HART communication enables:

• Remote configuration
• Digital diagnostics
• Device calibration
• Tagging
• Process monitoring

Power Supply

• 13.5–28 VDC

Suitable for standard industrial 24 VDC instrumentation systems.

Ambient Temperature

Operating ambient temperature:

• −40°C to +70°C
• Maximum permissible:
  • +80°C (depending on installation conditions)

Process Connection

• 1/2″ NPT Male Thread

Suitable for installation on:

• Process pipelines
• Pressure manifolds
• Pressure vessels
• Hydraulic systems
• Pneumatic systems

Protection Rating

Enclosure Protection

• IP66

Provides protection against:

• Dust ingress
• Powerful water jets
• Outdoor industrial environments

Explosion Protection

The transmitter is certified for hazardous locations.

ATEX Certification

Certificate

FTZU 08 ATEX 0020

Explosion Protection Marking

II 1/2G Ex ia IIC T4/T5 Ga/Gb

Meaning:

• Equipment Group II
• Category 1/2 Gas
• Intrinsically Safe (Ex ia)
• Suitable for Gas Group IIC (Hydrogen, Acetylene, etc.)
• Temperature Class:
  • T4
  • T5
• Suitable for Zone 0 and Zone 1 hazardous areas

Intrinsic Safety Parameters

The nameplate specifies:

These values are required for designing intrinsically safe loops and selecting compatible safety barriers or isolators.

Construction Features

• Rugged industrial aluminum housing
• Corrosion-resistant enclosure
• Weatherproof design
• Field wiring terminals
• Smart microprocessor electronics
• High stability sensing element
• Compact design
• Suitable for field mounting

Typical Applications

The APC-2000ALW pressure transmitter is suitable for measuring pressure in:

• Oil & Gas
• Petrochemical plants
• Chemical processing
• Refineries
• Power plants
• Water treatment systems
• Hydraulic systems
• Pneumatic systems
• Compressors
• Pumps
• Pipelines
• Storage tanks
• Utility systems

Key Features

• High measurement accuracy
• Excellent long-term stability
• Smart HART® 5.1 communication
• Wide pressure range (0–7 MPa)
• 4–20 mA industry-standard output
• 13.5–28 VDC power supply
• Intrinsically Safe (Ex ia) ATEX certified
• Suitable for Zone 0/1 hazardous areas
• IP66 weatherproof enclosure
• 1/2″ NPT male process connection
• Remote configuration and diagnostics
• Reliable performance in harsh industrial environments

Nameplate Information
