Perusahaan Distributor Madas di Jakarta

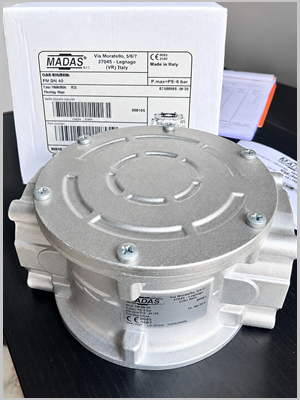

Perusahaan Distributor Madas di Jakarta The MADAS FM DN40 Gas Filter is a high-efficiency industrial gas filter designed to remove dust, rust, scale, and other solid contaminants from gas pipelines, ensuring reliable operation and long service life of downstream equipment such as pressure regulators, safety shut-off valves, burners, boilers, gas meters, and control systems. It is suitable for use with natural gas, LPG, methane, air, nitrogen, and other dry, non-aggressive gases.
Perusahaan Distributor Madas di Jakarta
The filter features a robust die-cast aluminum body and a large synthetic washable filter cartridge that can be completely removed for inspection, cleaning, or replacement, minimizing maintenance costs and downtime. The unit is manufactured in accordance with European standards and is widely used in commercial and industrial gas installations.
Product Description
The MADAS FM DN40 Gas Filter (1½”) is engineered to provide efficient gas filtration by preventing particles and debris carried by the gas stream from entering sensitive control and safety equipment. Its high-capacity filter element ensures low pressure loss while maintaining excellent filtration performance. The removable cartridge design enables quick maintenance and long-term operational reliability.
Designed for harsh industrial environments, the filter operates within a temperature range of –40°C to +70°C and is available with maximum working pressures of 2 bar or 6 bar, depending on the model configuration. Standard filtration is 50 microns, with optional 20-micron and 10-micron elements available for applications requiring finer particle removal.
The FM series complies with EN 126, EU Regulation 2016/426 for gas appliances, and the PED 2014/68/EU Pressure Equipment Directive, ensuring safe and reliable operation in industrial gas systems.
Technical Specifications
- Model: FM DN40
- Nominal Size: DN40 (1½”)
- Connection Type: Rp threaded connection according to EN 10226 (optional flanged version available)
- Body Material: Die-cast aluminum alloy
- Filter Element Material: Washable synthetic fiber (Viledon)
- Standard Filtration: 50 μm
- Optional Filtration: 20 μm or 10 μm
- Maximum Operating Pressure: 2 bar or 6 bar
- Operating Temperature: –40°C to +70°C
- Suitable Media: Natural gas, LPG, methane, air, nitrogen, and other dry non-aggressive gases
- Installation Position: Horizontal or vertical (following the flow direction arrow)
- Compliance: EN 126, EU 2016/426, PED 2014/68/EU
- Country of Origin: Italy
