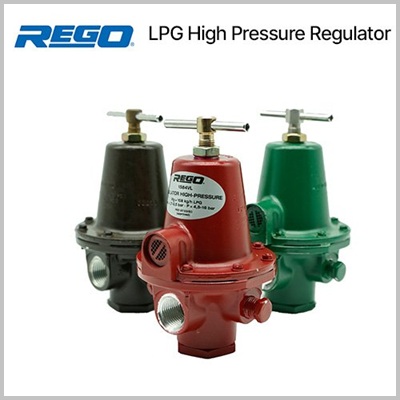

Distributor Rego 1580V High Pressure Gas Pressure Reducing Regulator
WWW.DISTRIBUTORALATINDUSTRI.COM | Distributor Rego 1580V High Pressure Gas Pressure Reducing Regulator | The RegO 1580V Series is a family of high-pressure, direct-acting pressure reducing regulators designed for industrial and commercial LP-Gas systems. The series reduces LP-Gas (Propane) or Anhydrous Ammonia (NH₃) container pressure to a controlled outlet pressure ranging from 3 to 125 PSIG (0.2 to 8.6 barg), depending on the model. These regulators are engineered for high-capacity gas flow and are widely used in demanding industrial applications where stable pressure regulation and high throughput are required.
Distributor Rego 1580V High Pressure Gas Pressure Reducing Regulator
Product Description
- Product Name: High Pressure Gas Pressure Reducing Regulator
- Manufacturer: RegO
- Series: 1580V™
- Regulator Type: Direct-Acting, Spring-Loaded Pressure Regulator
- Service:
- LP-Gas (Propane)
- Anhydrous Ammonia (AA1580V Series)
- Operating Principle: Pressure Reducing (Pounds-to-Pounds) Regulator
- Outlet Pressure Range:
- 3–30 PSIG (VN models)
- 25–50 PSIG (VL models)
- 45–125 PSIG (VH models)
- Connection Sizes:
- 1/2″ FNPT (1584 Series)
- 3/4″ FNPT (1586 Series)
- 1″ FNPT (1588 Series)
- Adjustment Method: Tee Handle
- Temperature Range: –40°F to +165°F (–40°C to +74°C)
Construction Materials
- Body: Forged Aluminum
- Bonnet: Die-Cast Aluminum
- Spring: Steel
- Valve Seat Disc: Resilient Rubber
- Diaphragm: Integrated Fabric-Reinforced Synthetic Rubber
- Connection Type: Female NPT × Female NPT
Key Features
- High-capacity regulator designed for heavy-duty industrial and commercial gas service.
- Reduces LP-Gas or NH₃ container pressure to a stable downstream pressure between 3 and 125 PSIG, depending on the selected model.
- Large nozzle and straight-through flow path provide high flow capacity with minimal pressure drop and improved resistance to freeze-up.
- Suitable for both liquid and vapor LP-Gas service.
- O-ring retainer assembly helps reduce vibration and improves pressure stability.
- Equipped with a 1/4″ FNPT pressure gauge port for convenient installation of a pressure gauge.
- Rugged forged aluminum body offers excellent mechanical strength and corrosion resistance.
- Designed for continuous operation in demanding industrial environments.
- Available in multiple connection sizes and outlet pressure ranges to accommodate a wide variety of applications.
Typical Applications
- LPG bulk storage terminals
- Industrial gas distribution systems
- First-stage regulation in large multi-regulator installations
- Crop dryers
- Asphalt batch mixing plants
- Road construction tar kettles and tar wagons
- Industrial furnaces and heat treatment systems
- LPG vaporizers
- Commercial and industrial burners
- Petrochemical and chemical processing facilities
- Anhydrous ammonia systems (AA1580V Series) for agricultural and industrial applications.
Available Models
| Model | Connection Size | Outlet Pressure Range |
|---|---|---|
| 1584VN / VL / VH | 1/2″ FNPT | 3–30, 25–50, or 45–125 PSIG |
| 1586VN / VL / VH | 3/4″ FNPT | 3–30, 25–50, or 45–125 PSIG |
| 1588VN / VL / VH | 1″ FNPT | 3–30, 25–50, or 45–125 PSIG |
