Agen BelGAS P627 High Flow Gas Pressure Regulator

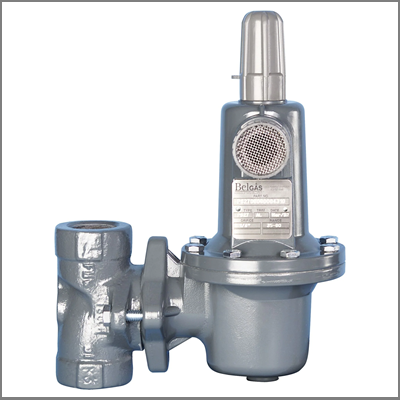

WWW.DISTRIBUTORALATINDUSTRI.COM | Agen BelGAS P627 High Flow Gas Pressure Regulator The BelGAS P627 is a spring-loaded, direct-operated high-flow gas pressure regulator designed to reduce and maintain a stable downstream pressure in high-capacity gas transmission and distribution systems. Engineered for demanding industrial and oil & gas applications, the P627 provides accurate pressure control over a wide range of inlet pressures and flow rates while maintaining excellent stability and reliability.

Agen BelGAS P627 High Flow Gas Pressure Regulator

Its rugged construction includes a powder-coated epoxy finish for enhanced corrosion resistance and durability in harsh operating environments. The regulator is available in multiple body materials, including cast aluminum, ductile iron, carbon steel, stainless steel, and low-temperature carbon steel (LCC), making it suitable for standard, corrosive, and low-temperature services. NACE-compliant versions are also available for sour gas applications.

The P627 features a balanced valve design and offers multiple body orientations for installation flexibility. It is available with internal or external pressure registration and supports a wide range of body connections, including NPT threaded, RF flanged, RTJ flanged, and socket weld connections. The regulator is commonly installed in fuel gas systems, gas gathering stations, pressure reduction stations, monitoring regulator systems, farm tap installations, and industrial gas distribution networks.

Technical Description
  • Brand: BelGAS
  • Model: P627
  • Series: 627 Series
  • Product Type: High Flow Gas Pressure Regulator
  • Operating Principle: Spring-loaded, direct-operated pressure reducing regulator
  • Function: Reduces and maintains constant downstream gas pressure
  • Suitable Media: Natural Gas, LPG, Fuel Gas, Air, and other clean, non-corrosive gases
  • Applications: Oil & Gas, Industrial Gas Distribution, Fuel Gas Systems, Gas Gathering, Pressure Reduction Stations, Monitoring Regulators, Farm Tap Regulation
  • Body Sizes: 1″, 2″, 3″, and 4″ NPT (additional flanged configurations available)
  • Connection Types: NPT, RF Flanged, RTJ Flanged, Socket Weld
  • Flange Ratings: ANSI Class 150 RF, 300 RF, 600 RF, and 900 RTJ
  • Spring Range: 5–500 psig (depending on spring selection)
  • Maximum Inlet Pressure: Up to 2,000 psig (depending on seat material and body construction)
  • Seat Materials: Nitrile (NBR), Nylon, or Fluorocarbon (FKM)
  • Diaphragm Material: Nitrile (low-pressure models) or Neoprene (high-pressure models)
  • Body Material Options: Cast Aluminum, Ductile Iron, Carbon Steel, Stainless Steel (CF8M), and Low Temperature Carbon Steel (LCC)
  • Construction Features: Powder-coated epoxy exterior, balanced valve design, multi-position body and spring case, optional external pressure registration, optional NACE-compliant construction
  • Operating Temperature: Approximately −29°C to +82°C (material dependent)
  • Industry Standards: Optional NACE MR0175/MR0103 compliant construction for sour gas service.
